HM2

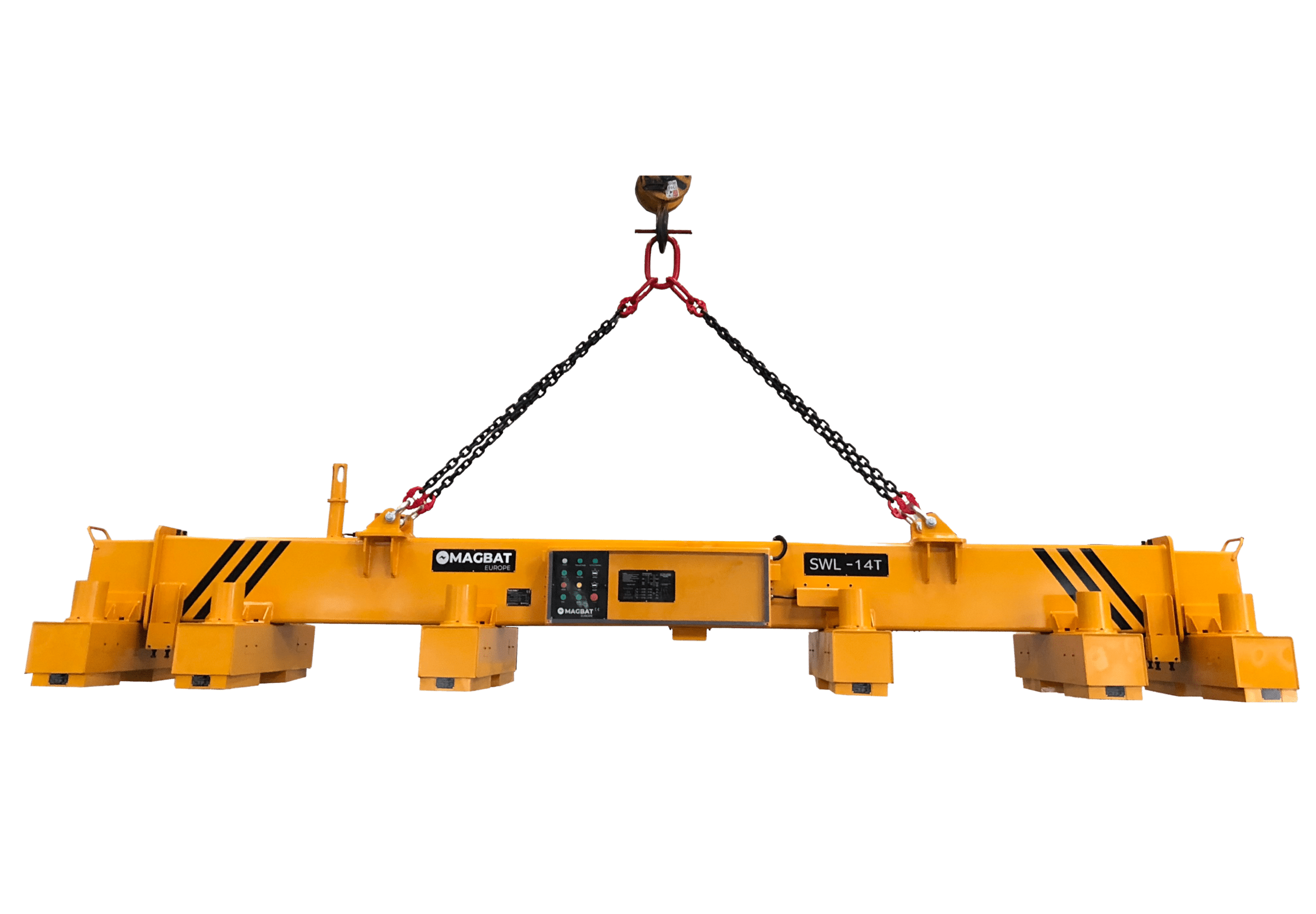

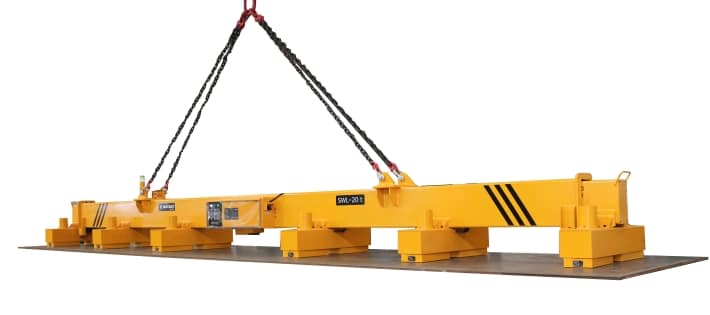

Telescopic electro permanent magnetic beam
LIFTING STEEL SHEETS IN VARIOUS LENGTHS
DESCRIPTION

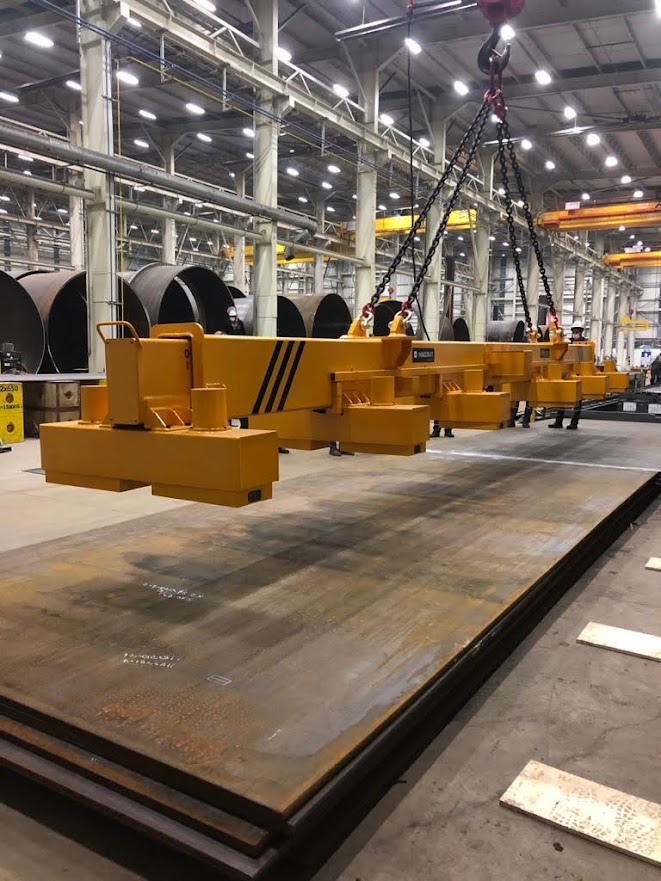

The HM2 telescopic electro permanent magnetic beam is a versatile solution designed for lifting steel sheets of various lengths, with a minimum thickness of 5mm.
This innovative device combines the benefits of electro permanent magnets and telescopic functionality.
It provides a secure and efficient lifting process, ensuring reliable performance and enhanced productivity.
The beam’s electro permanent magnets enable quick activation and deactivation, eliminating the need for a continuous power supply during lifting operations.
With its adjustable telescopic feature, the HM2 beam offers flexibility to accommodate different sheet sizes while maintaining 100% safety.
InquiryFEATURES
- Welded beam made of structural steel S355, including Chains, and lifting Ring.

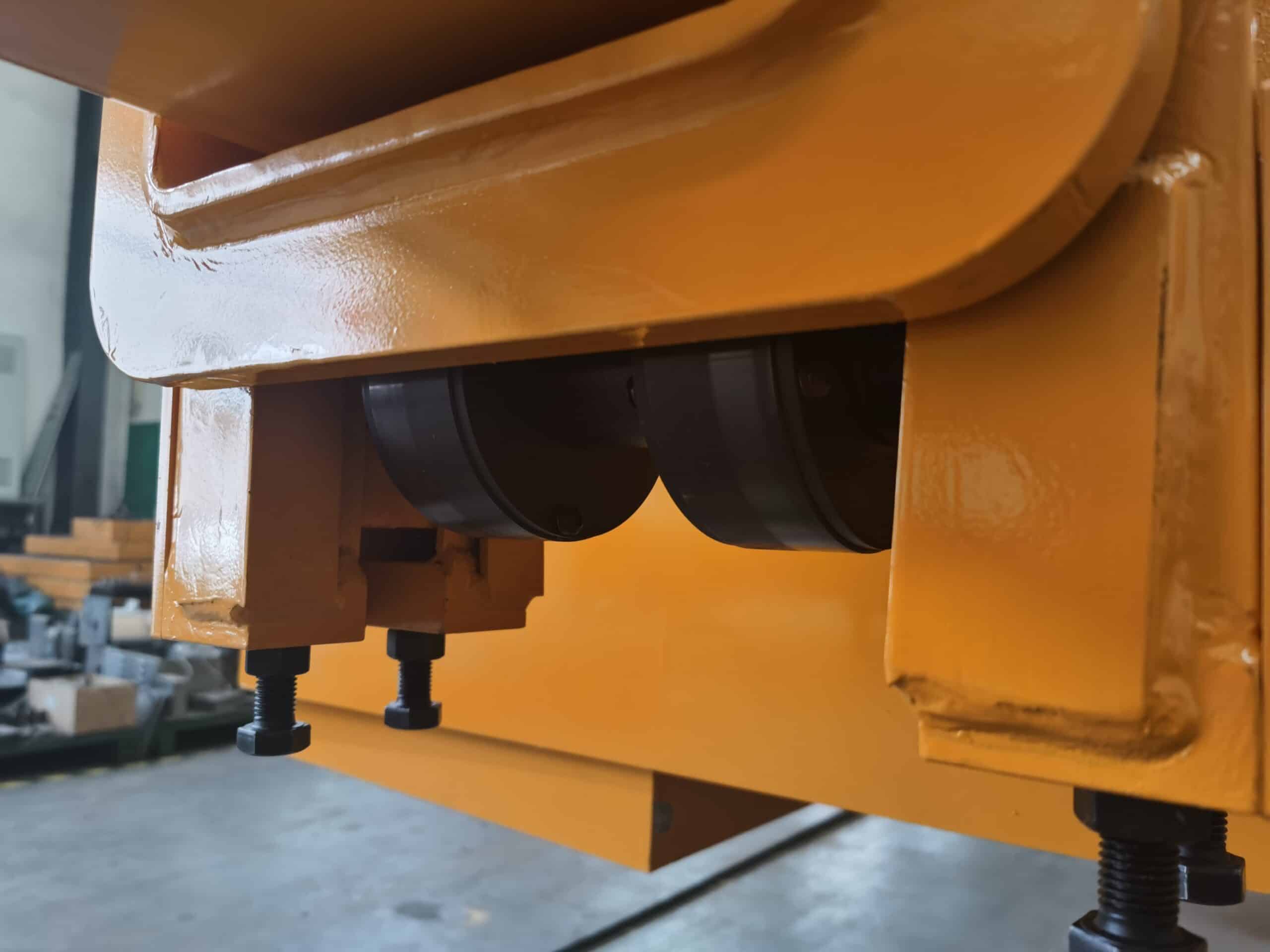

- Electrical driven telescopic System.
- Electro permanent magnetic Modules, elastically suspended, for perfect adaptation to the steel Sheet.

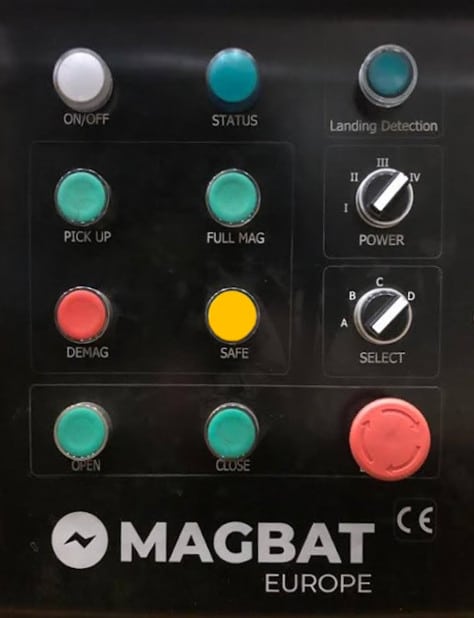

- Operation by the digital push buttons on the control unit or by the standard supplied radio remote control.

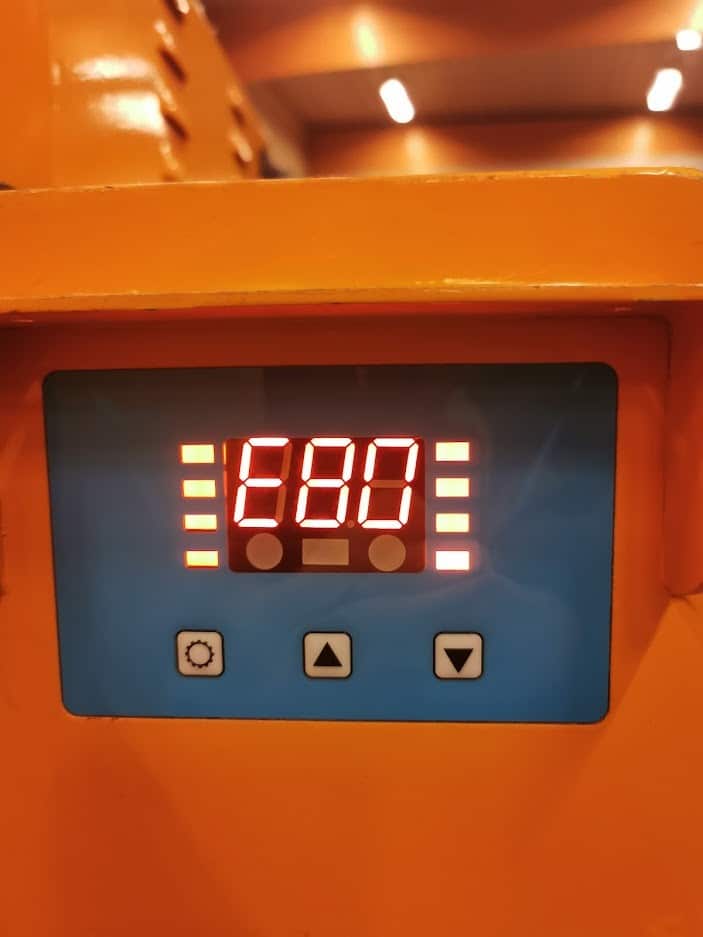

- High advanced SPC-system (System Performance Check)
- Depending on the dimensions of the steel plate, a corresponding number of magnetic modules can be selected via a 4-position switch.
- The PICK-UP cycle grants the safe lifting of a SINGLE steel Sheet.

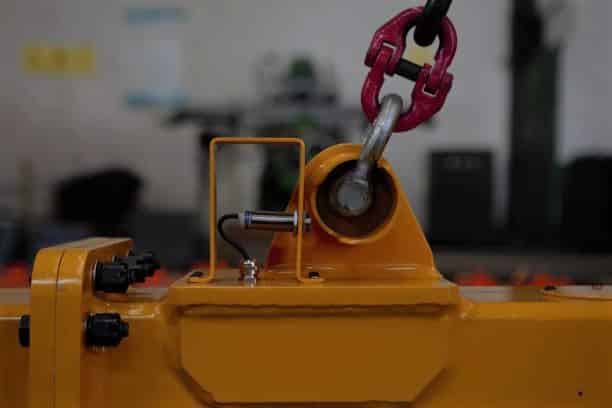

- Landing detection system to avoid accidental demagnetisation in the air.
| Model | SWL (kg) | Min. Thickness (mm) | Width min - max (mm) | Length min - max (mm) | Qty EPM Modules | Weight (kg) |
|---|---|---|---|---|---|---|
| HM2-12-050 | 5.000 | 5 | 500 - 3.000 | 3.000 - 12.000 | 8 | 2.350 |
| HM2-12-080 | 8.000 | 5 | 500 - 3.000 | 3.000 - 12.000 | 8 | 2.500 |
| HM2-12-100 | 10.000 | 5 | 500 - 3000 | 3.000 - 12.000 | 8 | 2.650 |
| HM2-12-120 | 12.000 | 5 | 500 - 3.000 | 3.000 - 12.000 | 8 | 2.800 |
| HM2-12-150 | 15.000 | 5 | 500 - 3.000 | 3.000 - 12.000 | 8 | 2.950 |
| HM2-12-200 | 20.000 | 8 | 500 - 3.200 | 3.000 - 12.000 | 12 | 3.350 |
| HM2-12-240 | 24.000 | 5 | 500 - 3.200 | 3.000 - 12.000 | 12 | 3.550 |
| HM2-16-090 | 9.000 | 5 | 500 - 3.500 | 3.000 - 16.000 | 12 | 3.300 |
| HM2-16-120 | 12.000 | 5 | 500 - 3.500 | 3.000 - 16.000 | 12 | 3.400 |
| HM2-16-160 | 16.000 | 5 | 500 - 3.500 | 3.000 - 16.000 | 12 | 3.600 |
| HM2-16-200 | 20.000 | 5 | 500 - 3.500 | 3.000 - 16.000 | 12 | 3.800 |
| HM2-16-240 | 24.000 | 5 | 500 - 3.500 | 3.000 - 16.000 | 12 | 4.000 |
