MAG-LOCK
Super strong rubber coated permanent magnets
FIXING COMPONENTS IN OFFSHORE ENVIRONMENT
DESCRIPTION
MAG-LOCK© magnets are the perfect solution for a durable and reliable fastening system.
Made from ultra-strong NEODYM material, these magnets do not lose any power over time.
The EPDM rubber coating provides a high friction coefficient, ensuring a secure attachment to metal surfaces while also offering excellent protection against corrosion.

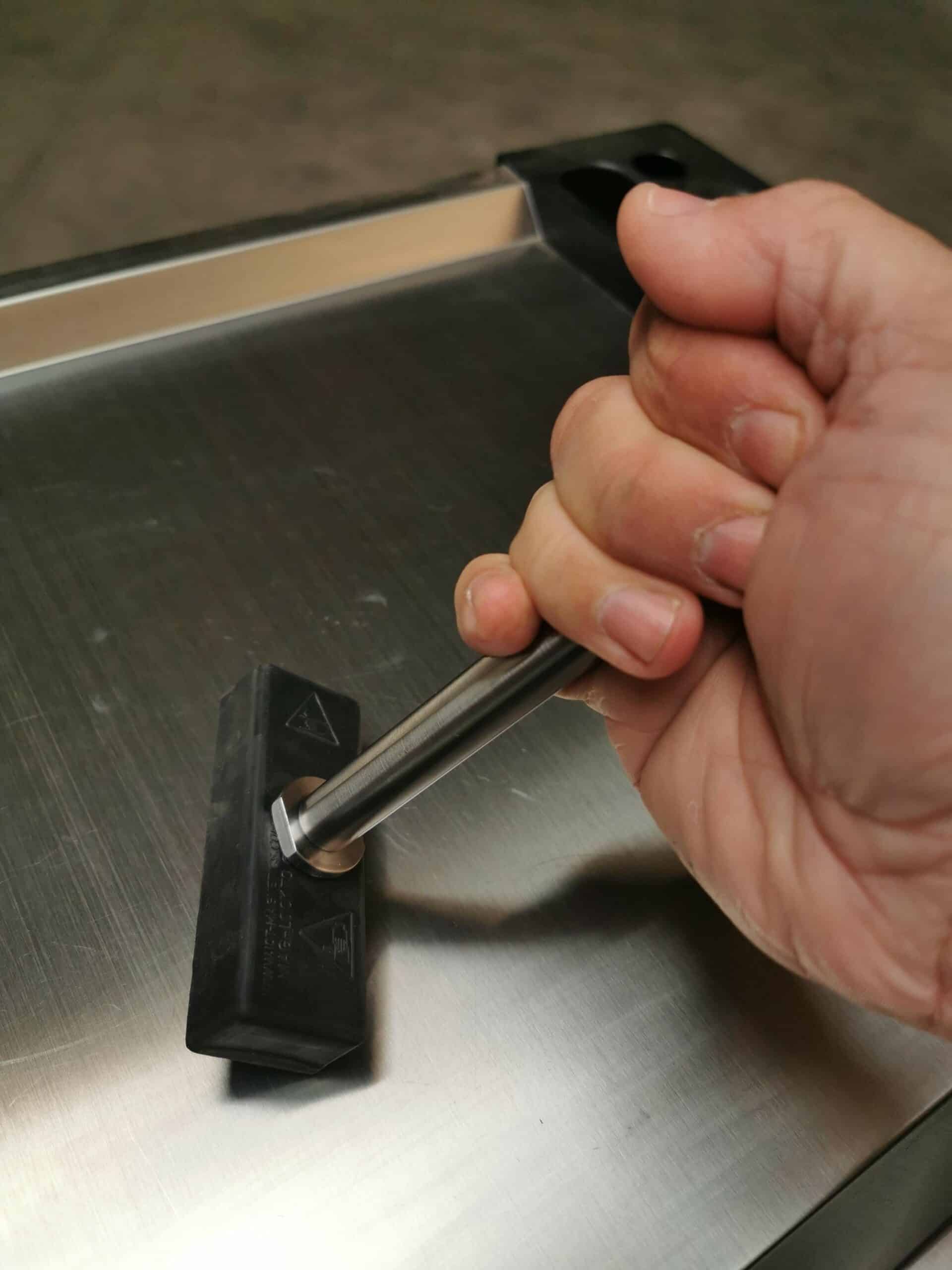

With an internal stainless-steel thread (grade A4 316L), components can be easily attached without drilling or welding, making installation quick and hassle-free.
The MAG-LOCK© magnet system is a smart and efficient alternative to traditional fastening methods, saving time and money without compromising on quality or reliability.
InquiryFEATURES
- EPDM coating with high friction coefficient.
- Stainless steel (grade A4 316L) internal thread
- Available in 4 sizes (70-110-340-460 kg)

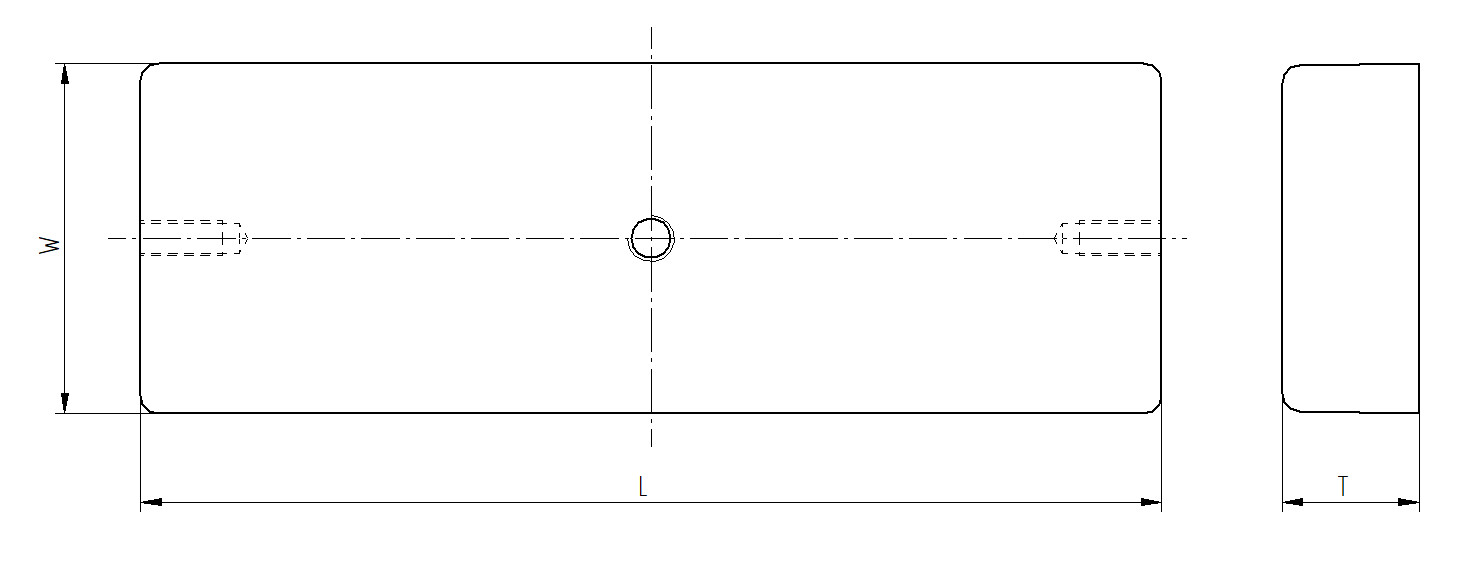

| MODEL | L (MM) | W (MM) | T (MM) | HOLDING FORCE (KG) | SHEAR FORCE (KG) | UPPER THREAD (M) | SIDE THREAD (M) | MAX. TEMP. (°C) | WEIGHT (KG) | COLOUR |
|---|---|---|---|---|---|---|---|---|---|---|
| MAG-LOCK 70 | 95 | 34 | 21 | 70 | 30 | 1X M6*14 | - | 60 | 0,35 | BLACK |
| MAG-LOCK 110 | 120 | 40 | 24 | 110 | 65 | 1X M6*14 | - | 60 | 0,65 | BLUE |
| MAG-LOCK 340 | 175 | 60 | 23,5 | 340 | 130 | 1X M8*16 | 2X M6*14 | 60 | 1,4 | BLACK |
| MAG-LOCK 460 | 201 | 61 | 26,5 | 460 | 200 | 1X M8*16 | 2X M6*14 | 60 | 2,0 | BLUE |
