MAG-FLEX
Rubber coated flexible Magnet
FIXING COMPONENTS ON CURVED SURFACES
FEATURES

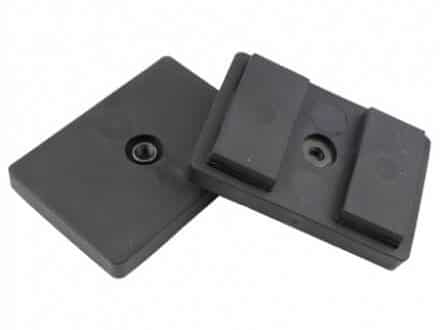

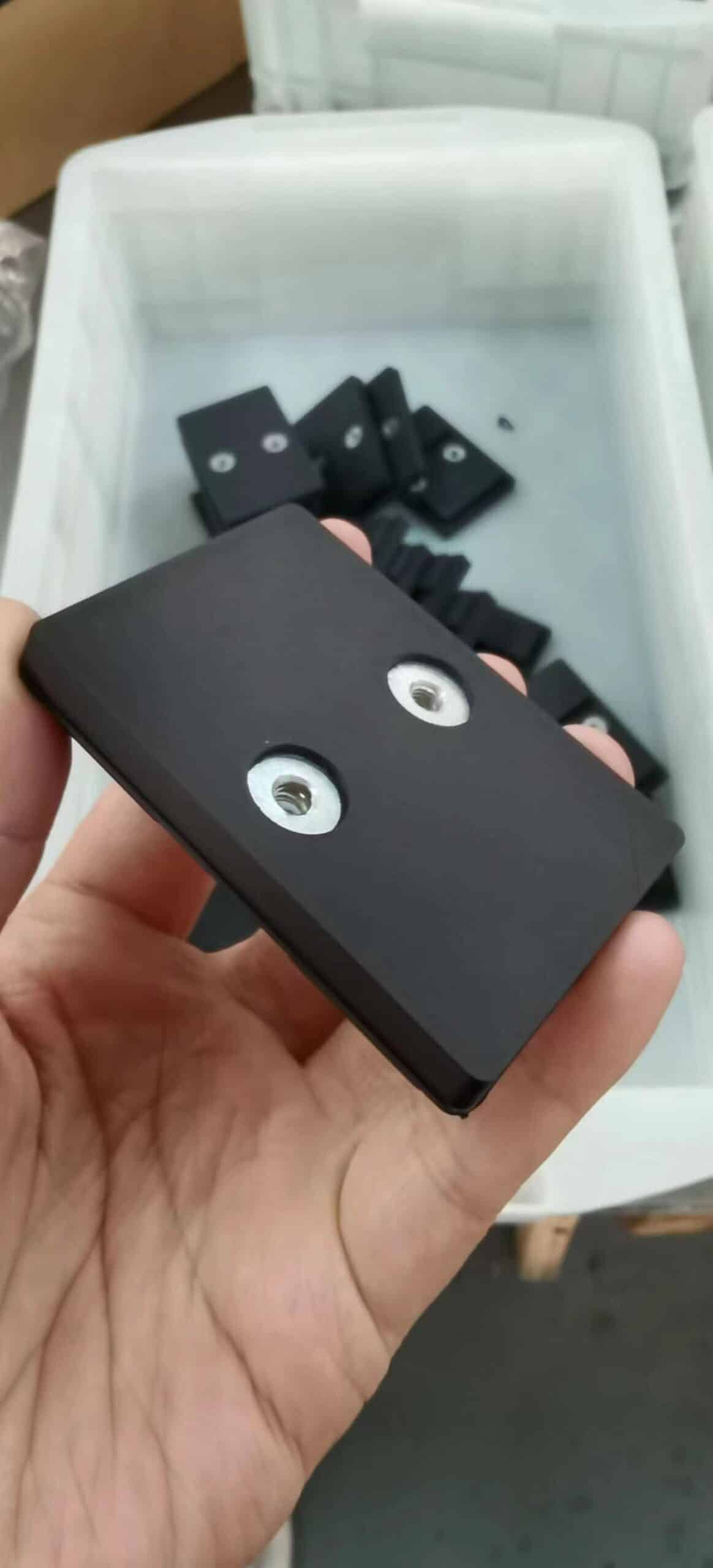

This rectangular, rubber-coated magnet with female thread is equipped with two magnetic blocks.
This makes the magnet perfect for use in, for example, wind turbine towers or other places where the surface is curved.
Thanks to the long pole distance, this magnet is also ideal for applications where there is a distance between magnet and opposite pole.
It is the perfect magnet system for offshore due to the extremely wear-resistant quality rubber coating that protects the magnet from corrosion.
Inquiry

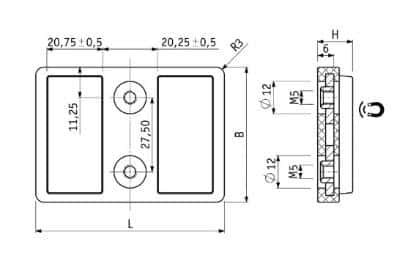

| MODEL | L (MM) | W (MM) | T (MM) | HOLDING FORCE (KG) | SHEAR FORCE (KG) | UPPER THREAD (M) | MAX. TEMP. (°C) | WEIGHT (G) |
|---|---|---|---|---|---|---|---|---|
| MAG-FLEX 30-1 | 70 | 50 | 13 | 29 | 9 | 1X M5 | 60 | 149 |
| MAG-FLEX 30-2 | 70 | 50 | 13 | 29 | 9 | 2X M5 | 60 | 149 |
