MAGNETIC MODULES
for Welding automation

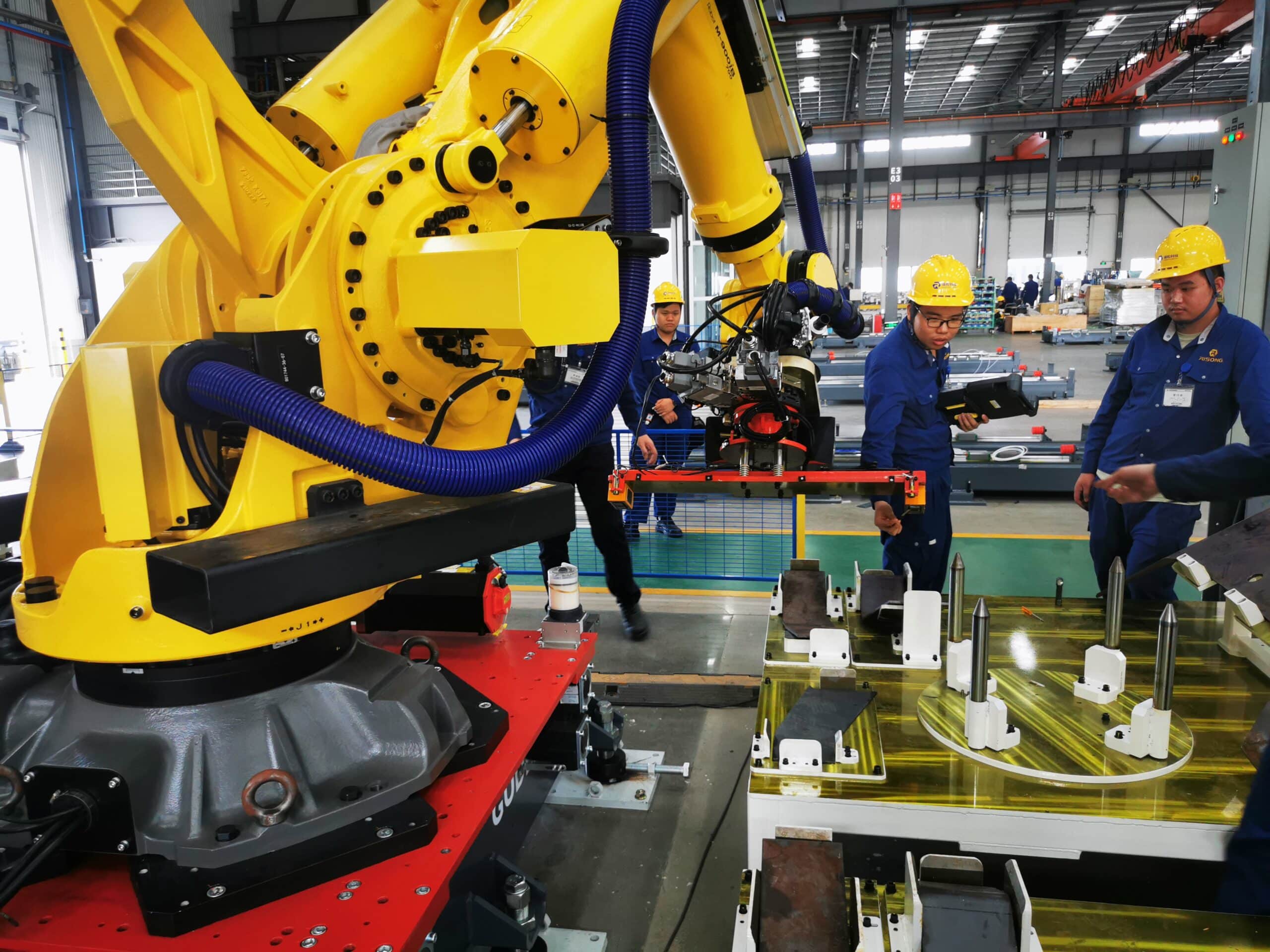

MAGNETIC MODULES TO BOOST YOUR PRODUCTION

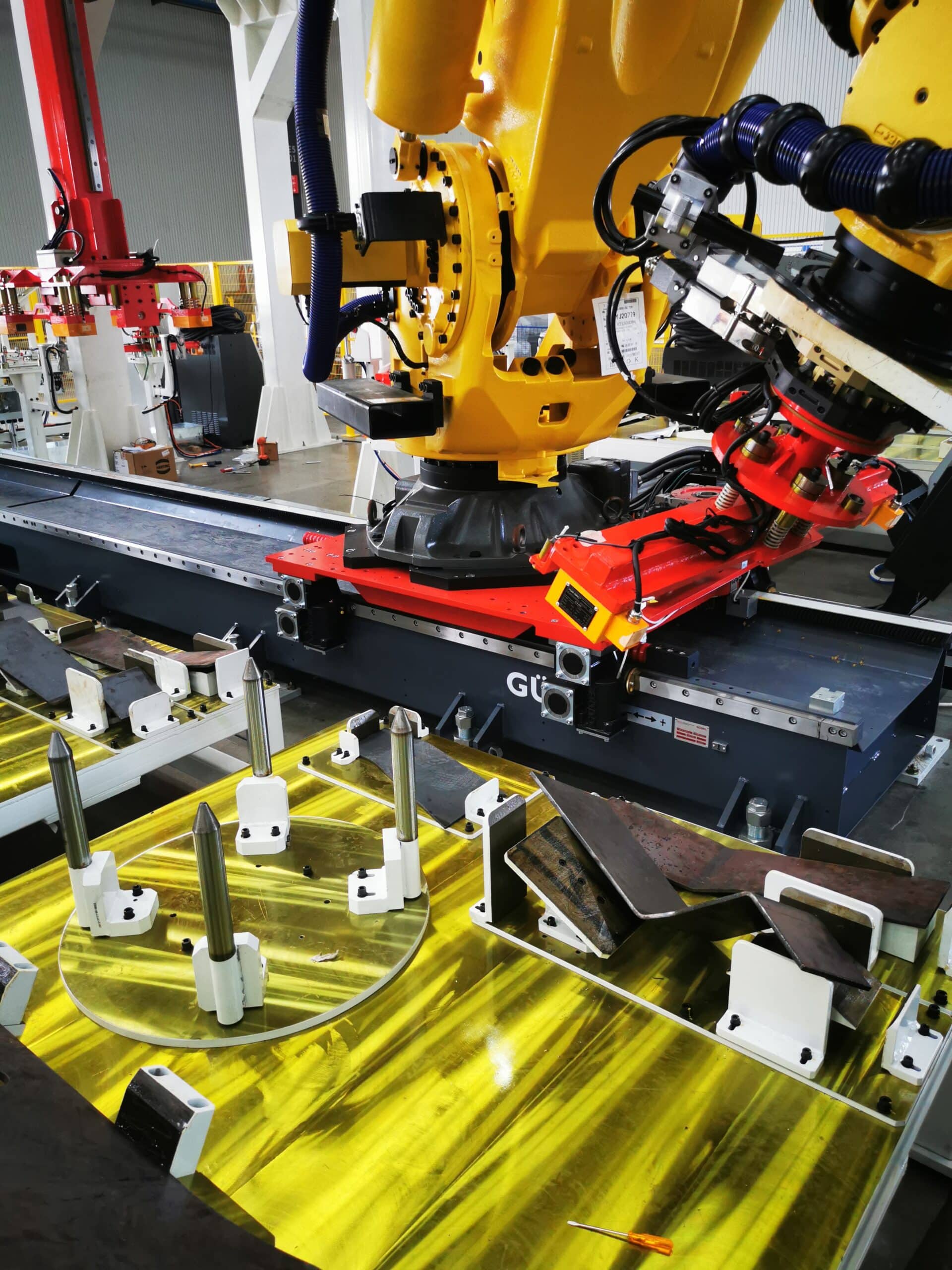

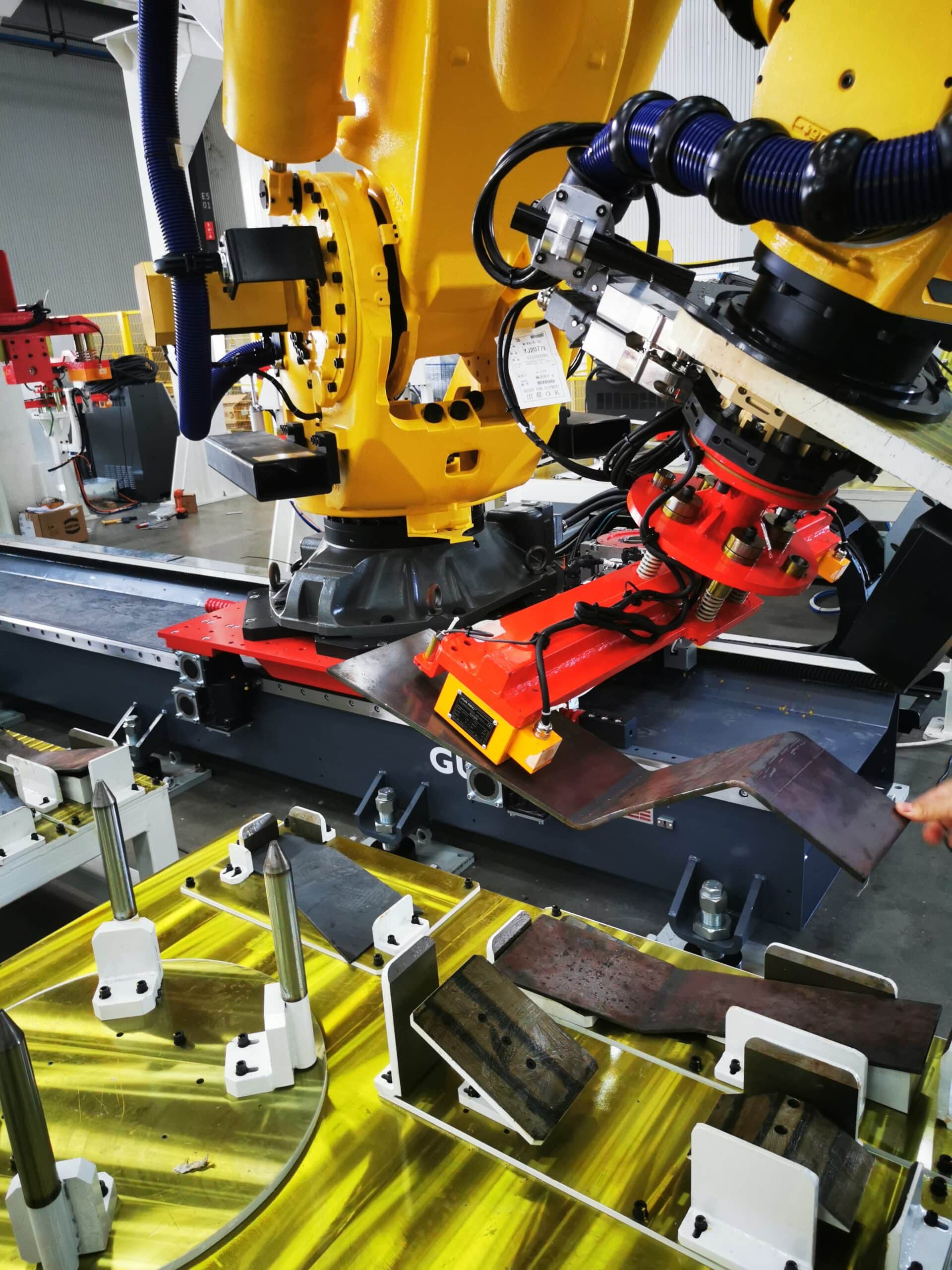

DESCRIPTION
Welding magnets are highly powerful magnets with a focused magnetic field, ideal for welding tasks.
They securely hold ferrous objects of various sizes and shapes, allowing welders to work hands-free, enhancing safety and stability during the welding process.
The localized magnetic field only impacts the immediate vicinity of the magnetic poles, ensuring it does not interfere with the welding operation.
Additionally, the size, shape, and holding force of the magnets can be customized to suit specific application requirements.

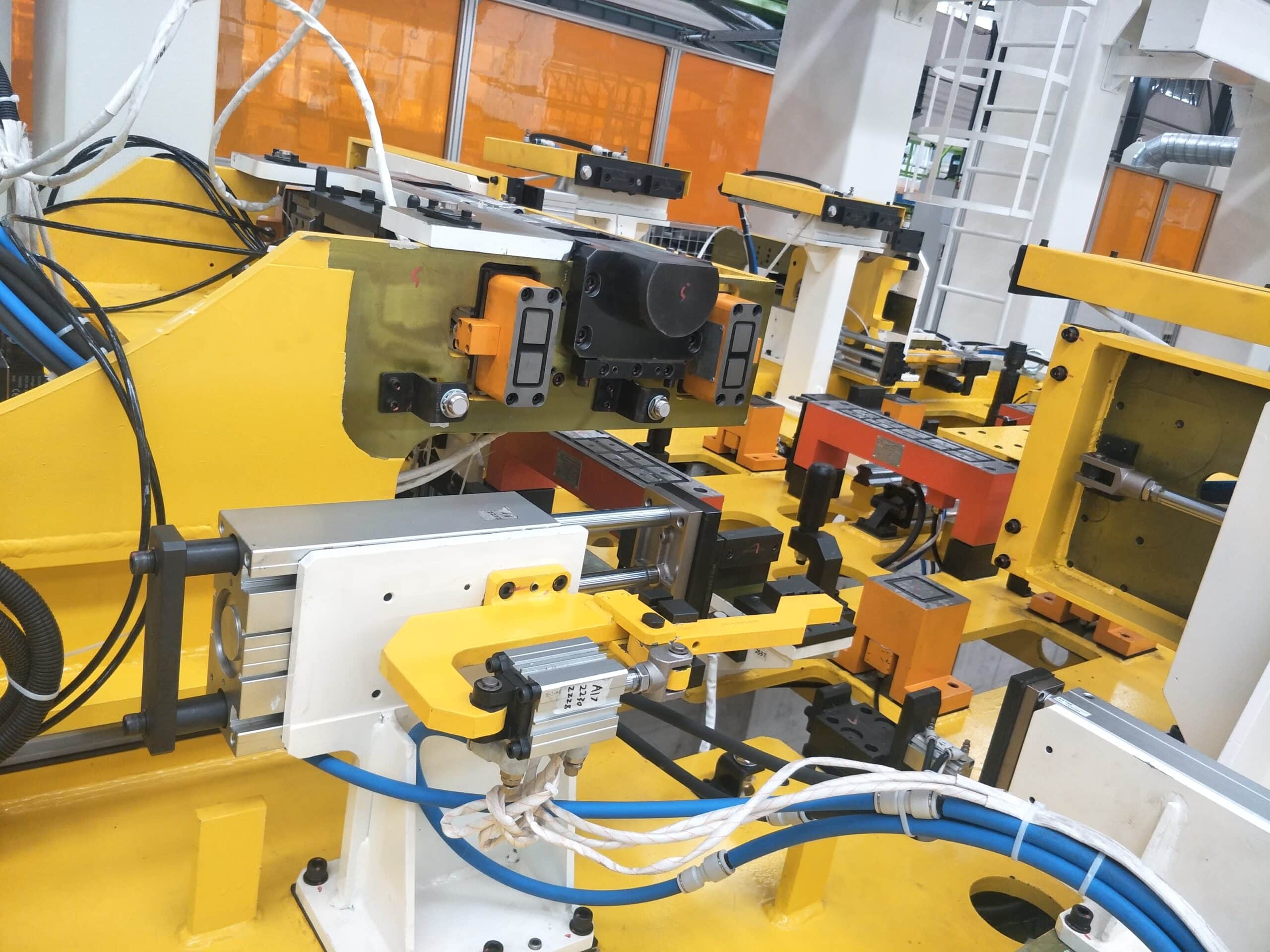

InquiryFEATURES
- Tailor-made solution for the best automation result.
- Lightweight with maximized end-of-arm gripping capacity.
- No damage or deformation of the workpiece when clamped by a magnetic gripper.
- The magnetic force remains present even in the event of a power failure.
- Safe & efficient picking and placement for repeated operations.
- Reduced labour costs and increased productivity.
| Model | Rated lifting force (Plate thickness ≥ 16mm) | Plate thickness | Max. breakaway Force | L | W | H | Weight |
|---|---|---|---|---|---|---|---|
| HEPMP-1510P50 | 160kg | ≥ 6mm | 650kg | 150mm | 100mm | 72mm | 8kg |
| HEPMP-320P50 | 320kg | ≥ 6mm | 1300kg | 180mm | 180mm | 72mm | 17kg |
| HEPMP-500P50 | 500kg | ≥ 6mm | 1950kg | 250mm | 180mm | 72mm | 23kg |
| HEPMP-720P50 | 720kg | ≥ 6mm | 2925kg | 250mm | 250mm | 72mm | 32kg |
| HEPMP-2012P70 | 320kg | ≥ 8mm | 1100kg | 190mm | 110mm | 72mm | 12kg |
| HEPMP-2020P70 | 640kg | ≥ 8mm | 2200kg | 200mm | 200mm | 72mm | 22kg |
| Model | Rated lifting force (Plate thickness ≥16mm) | Plate thickness | Max. breakaway force | L | W | H | Weight |
|---|---|---|---|---|---|---|---|
| HEPMP-30P30B | 30kg | 2-12mm | 120kg | 100mm | 54mm | 58mm | 2.2kg |
| HEPMP-60P30B | 60kg | 2-12mm | 200kg | 100mm | 100mm | 58mm | 4.6kg |
| HEPMP-100P30B | 100kg | 2-12mm | 400kg | 140mm | 100mm | 58mm | 5.5kg |
| HEPMP-200P30B | 200kg | 2-12mm | 800kg | 260mm | 100mm | 58mm | 10kg |
| HEPMP-60P30 | 60kg | 3-12mm | 220kg | 110mm | 60mm | 58mm | 3.7kg |
| HEPMP-1406P30 | 90kg | 3-12mm | 320kg | 140mm | 60mm | 58mm | 4.0kg |
| HEPMP-1906P30 | 120kg | 2-12mm | 440kg | 190mm | 60mm | 58mm | 4.8kg |
| Model | Rated lifting force (Steel tube wall thickness ≥12mm) | Steel tube wall thickness | Max. breakaway force | L | W | H | Weight |
|---|---|---|---|---|---|---|---|
| HEPMSP-60P45×24 | 60kg | ≥ 3mm | 240kg | 145mm | 90mm | 81mm | 8kg |
| HEPMSP-100P45×24 | 100kg | ≥ 3mm | 360kg | 200mm | 120mm | 81mm | 12kg |
| HEPMSP-200P45×24 | 200kg | ≥ 3mm | 600kg | 370mm | 105mm | 81mm | 17kg |
| HEPMSP-300P45×24 | 300kg | ≥ 3mm | 900kg | 435mm | 105mm | 81mm | 23.5kg |
| Customized round magnet | Rated lifting force | Plate thickness | Max. breakaway force | D | H | Weight |
|---|---|---|---|---|---|---|
| HEPM1-25 | 3kg | ≥ 2mm | 15kg | 25mm | 35mm | 120g |
| HEPM1-40-A | 20kg | ≥ 4mm | 80kg | 40mm | 48mm | 420g |
| HEPM1-40-B | 20kg | ≥ 4mm | 80kg | 40mm | 40mm | 350g |
| HEPM1-50 | 30kg | ≥ 6mm | 100kg | 49mm | 45mm | 650g |
| HEPM1-60-A | 50kg | ≥ 8mm | 200kg | 59mm | 50mm | 1kg |
| HEPM1-60-B | 50kg | ≥ 8mm | 200kg | 59mm | 50mm | 1kg |
| HEPM1-75 | 90kg | ≥12mm | 400kg | 78mm | 48mm | 1.5kg |
| HEPM1-100 | 150kg | ≥16mm | 650kg | 100mm | 65mm | 3.5kg |
| HEPM1-125 | 250kg | ≥ 20mm | 1200kg | 125mm | 65mm | 6kg |
| HEPM1-150 | 320kg | ≥ 25mm | 1500kg | 158mm | 70mm | 9.5kg |
