MAGNETIC GRIPPERS
for Robot Arms
MAGNETIC MODULES THAT BOOST YOUR PRODUCTION
DESCRIPTION

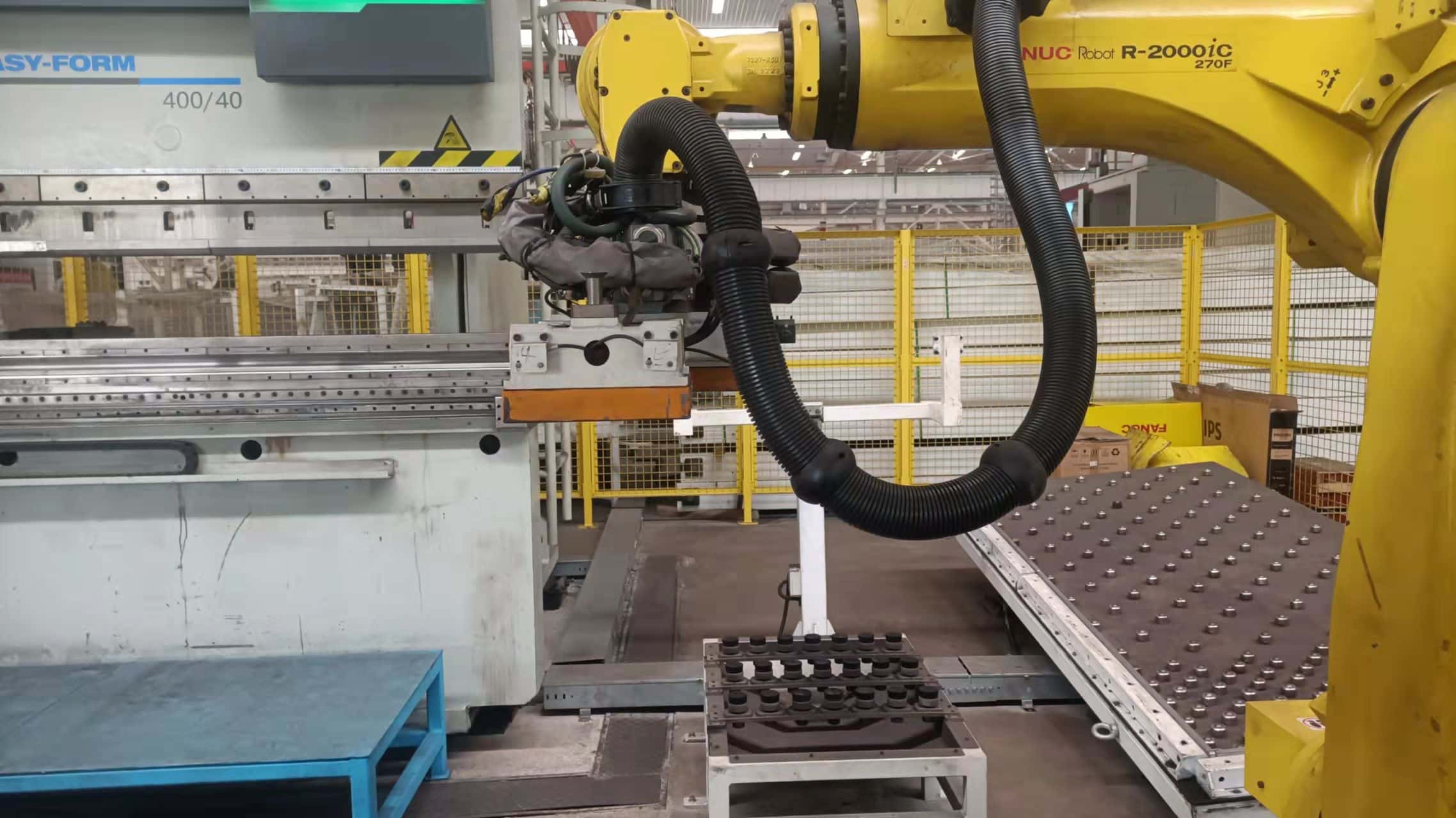

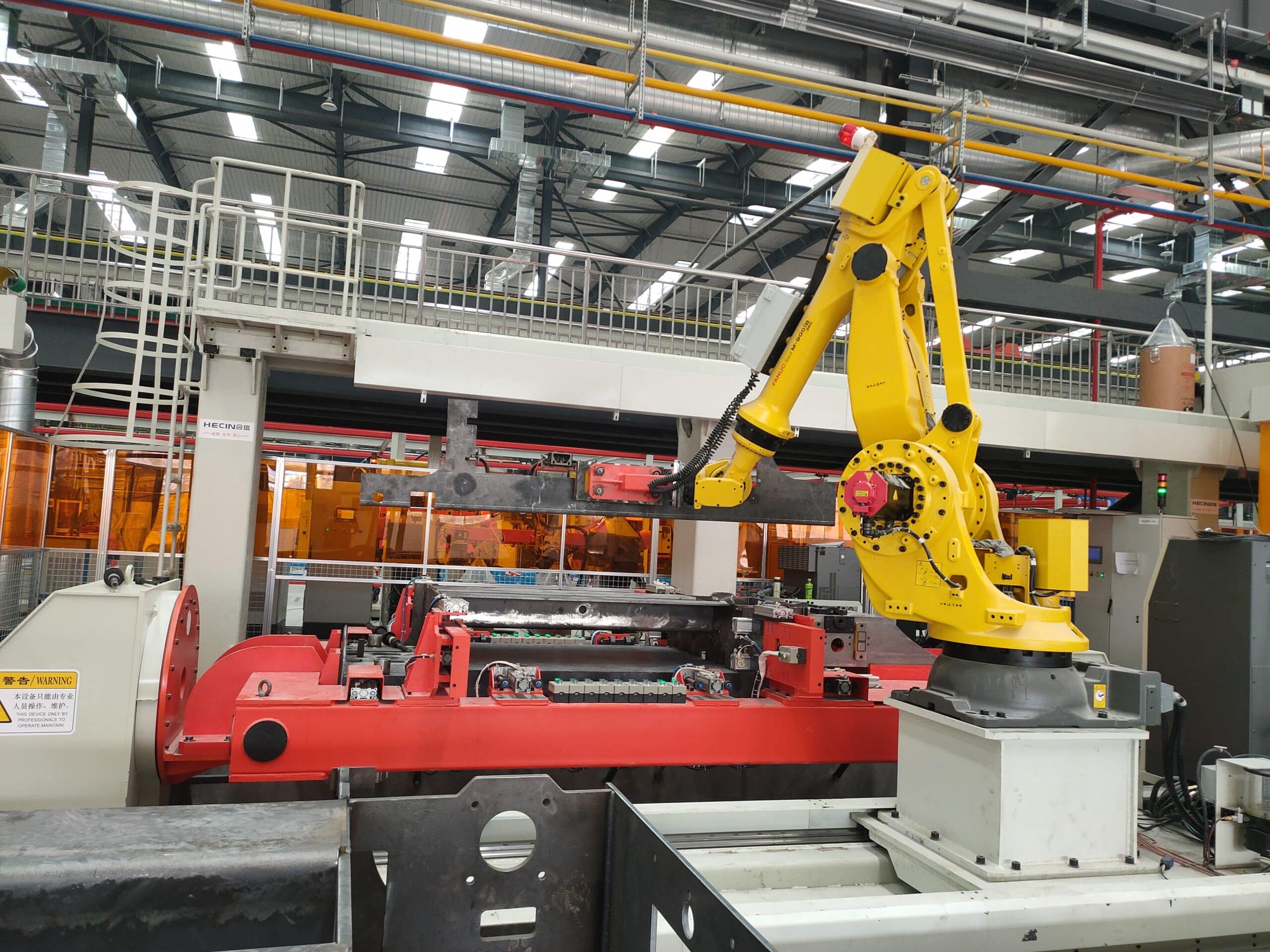

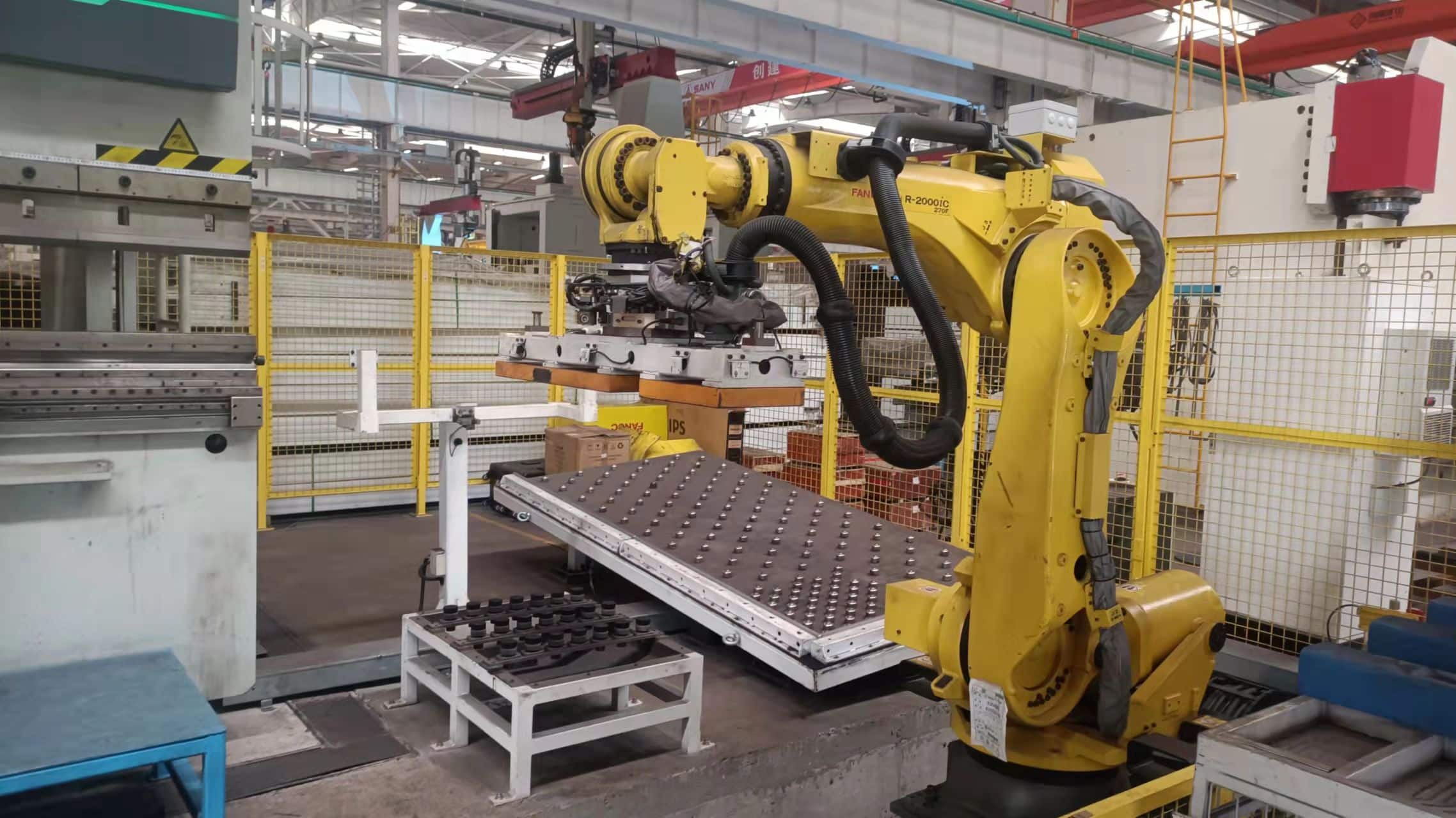

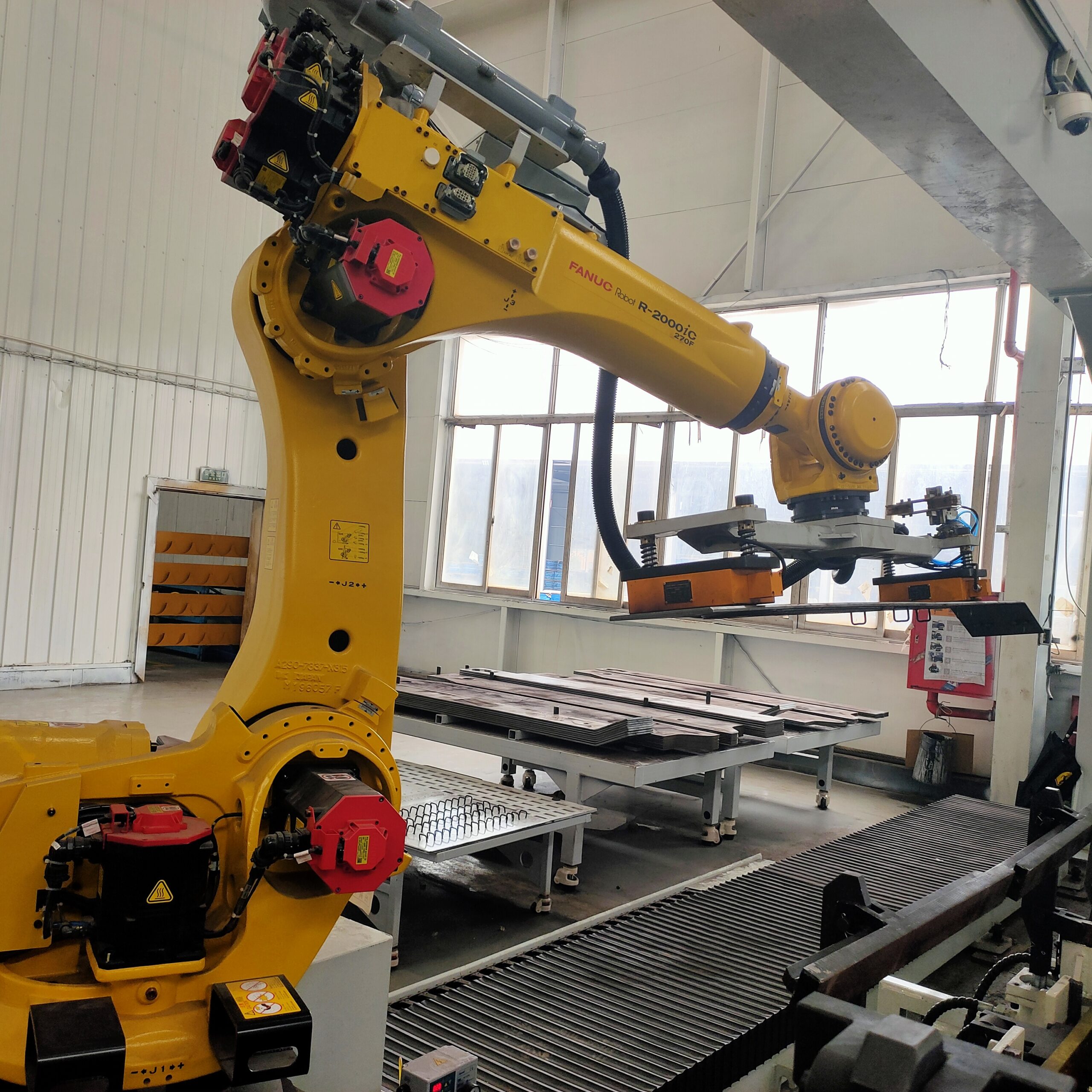

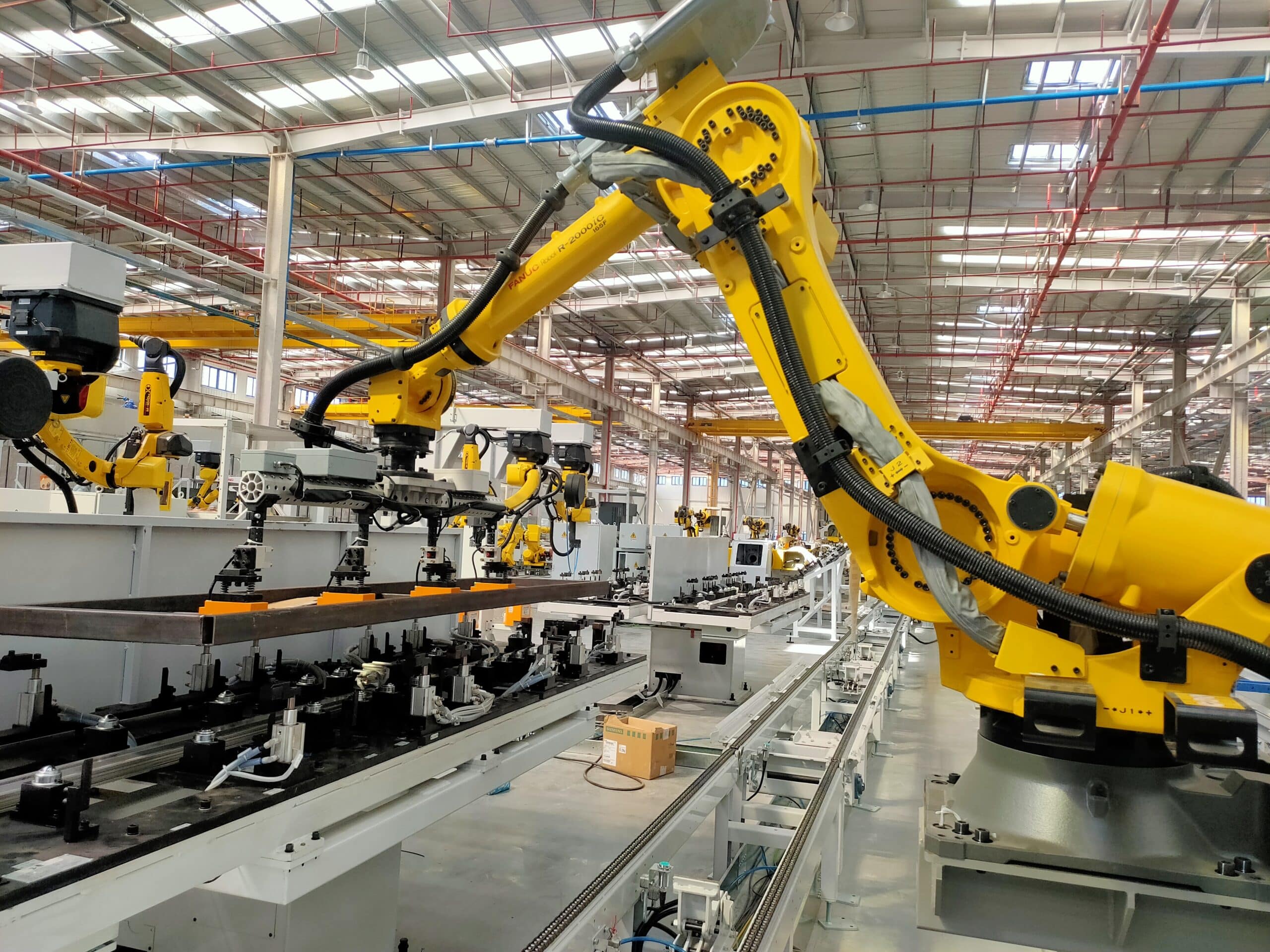

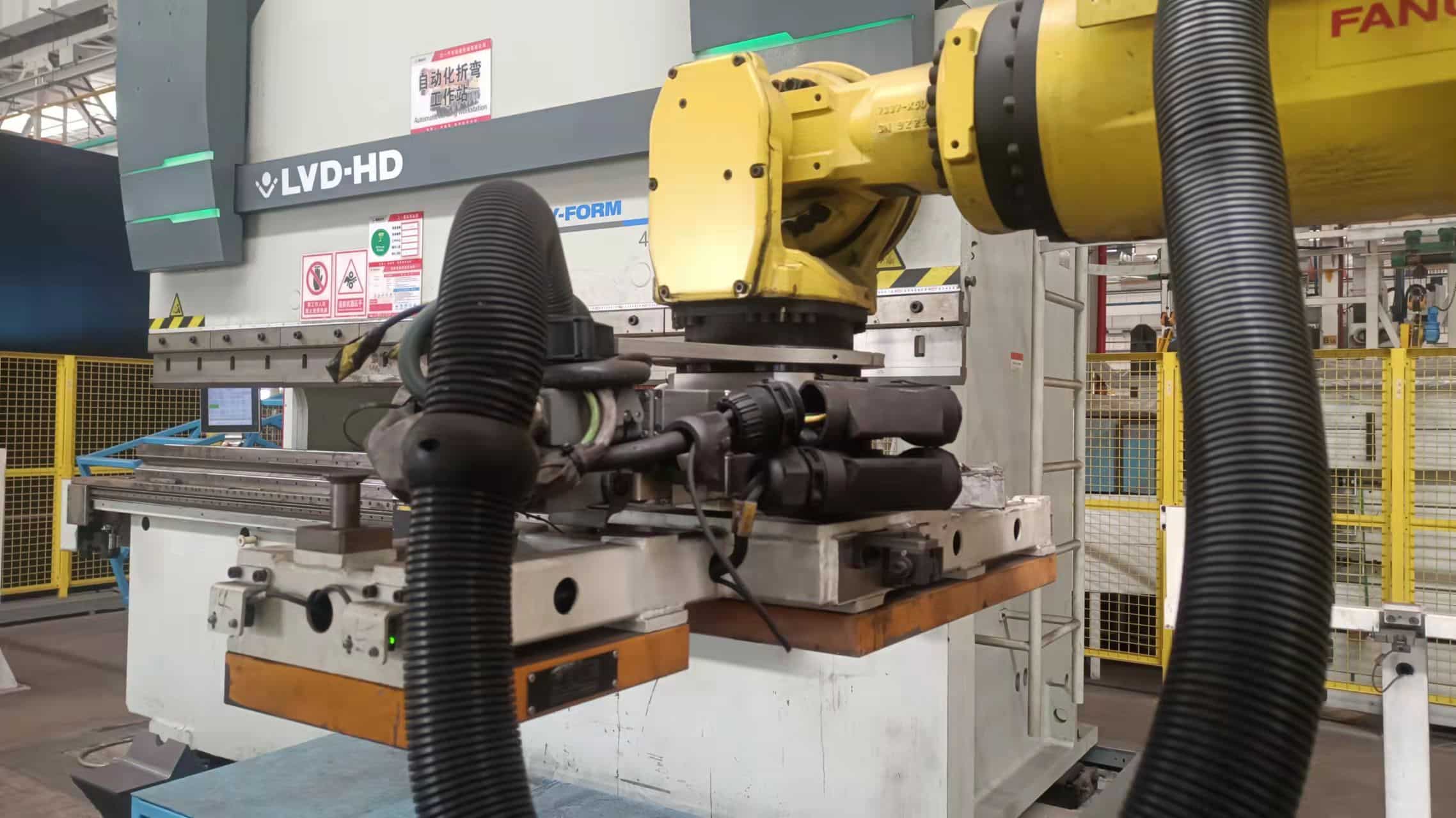

The electro-permanent magnet module is seamlessly integrated with an automatic device or manipulation robot, controllable via a PLC.
It quickly magnetizes and demagnetizes in approximately 1 second, ensuring safe movement and precise positioning.
Designed for 24/7 operation with rapid magnetization cycles, it significantly reduces labor costs while enhancing production efficiency.
This seamless integration and high-performance operation contribute to streamlined processes, increased output, and improved overall productivity.
ContactFEATURES
- Lightweight structure to maximise the end-of-arm capacity.
- Customised design for perfect pick-up of any workpiece.
- High productivity due to a short cycle time.
- Electropermanent magnetic Technology offers the safest transport method.
- Maintenance-free in use.
| Model | Rated lifting force (Material Thickness ≥ 16 mm) | Min. Material Thickness | Max. breakaway Force | L (mm) | W (mm) | H (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| HEPMP-1510P50 | 160kg | ≥ 6mm | 650kg | 150mm | 100mm | 72mm | 8kg |
| HEPMP-320P50 | 320kg | ≥ 6mm | 1300kg | 180mm | 180mm | 72mm | 17kg |
| HEPMP-500P50 | 500kg | ≥ 6mm | 1950kg | 250mm | 180mm | 72mm | 23kg |
| HEPMP-720P50 | 720kg | ≥ 6mm | 2925kg | 250mm | 250mm | 72mm | 32kg |
| HEPMP-2012P70 | 320kg | ≥ 8mm | 1100kg | 190mm | 110mm | 72mm | 12kg |
| HEPMP-2020P70 | 640kg | ≥ 8mm | 2200kg | 200mm | 200mm | 72mm | 22kg |
| Model | Rated lifting force (Material Thickness ≥ 16 mm) | Min. Material Thickness | Max. breakaway Force | L (mm) | W (mm) | H (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| HEPMP-30P30B | 30kg | 2-12mm | 120kg | 100mm | 54mm | 58mm | 2.2kg |
| HEPMP-60P30B | 60kg | 2-12mm | 200kg | 100mm | 100mm | 58mm | 4.6kg |
| HEPMP-100P30B | 100kg | 2-12mm | 400kg | 140mm | 100mm | 58mm | 5.5kg |
| HEPMP-200P30B | 200kg | 2-12mm | 800kg | 260mm | 100mm | 58mm | 10kg |
| HEPMP-60P30 | 60kg | 3-12mm | 220kg | 110mm | 60mm | 58mm | 3.7kg |
| HEPMP-1406P30 | 90kg | 3-12mm | 320kg | 140mm | 60mm | 58mm | 4.0kg |
| HEPMP-1906P30 | 120kg | 2-12mm | 440kg | 190mm | 60mm | 58mm | 4.8kg |
| Model | Rated lifting force (Material Thickness ≥ 16 mm) | Min. Material Thickness | Max. breakaway Force | L (mm) | W (mm) | H (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| HEPMSP-60P45×24 | 60kg | ≥ 3mm | 240kg | 145mm | 90mm | 81mm | 8kg |
| HEPMSP-100P45×24 | 100kg | ≥ 3mm | 360kg | 200mm | 120mm | 81mm | 12kg |
| HEPMSP-200P45×24 | 200kg | ≥ 3mm | 600kg | 370mm | 105mm | 81mm | 17kg |
| HEPMSP-300P45×24 | 300kg | ≥ 3mm | 900kg | 435mm | 105mm | 81mm | 23.5kg |
| Customized round magnet | Rated lifting force | Plate thickness | Max. breakway Force | D | H | Weight |
|---|---|---|---|---|---|---|
| HEPM1-25 | 3kg | ≥ 2mm | 15kg | 25mm | 35mm | 120g |
| HEPM1-40-A | 20kg | ≥ 4mm | 80kg | 40mm | 48mm | 420g |
| HEPM1-40-B | 20kg | ≥ 4mm | 80kg | 40mm | 40mm | 350g |
| HEPM1-50 | 30kg | ≥ 6mm | 100kg | 49mm | 45mm | 650g |
| HEPM1-60-A | 50kg | ≥ 8mm | 200kg | 59mm | 50mm | 1kg |
| HEPM1-60-B | 50kg | ≥ 8mm | 200kg | 59mm | 50mm | 1kg |
| HEPM1-75 | 90kg | ≥ 12mm | 400kg | 78mm | 48mm | 1.5kg |
| HEPM1-100 | 150kg | ≥ 16mm | 650kg | 100mm | 65mm | 3.5kg |
| HEPM1-125 | 250kg | ≥ 20mm | 1200kg | 125mm | 65mm | 6kg |
| HEPM1-150 | 320kg | ≥ 25mm | 1500kg | 158mm | 70mm | 9.5kg |
